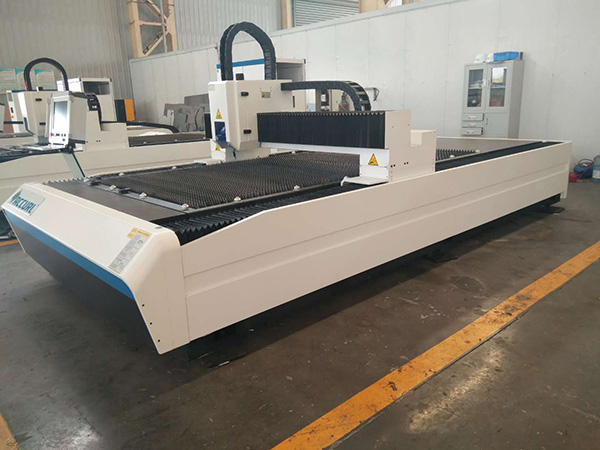

σωλήνα σωλήνα 6m μεταλλική κοπή από ανοξείδωτο χάλυβα 1000w 1500w λέιζερ κοπής

σωλήνας σωλήνα 6m μεταλλικό ανοξείδωτο χάλυβα κοπής 1000w, 1500w IPG ινών λέιζερ κοπής μηχανής

ΠΡΟΔΙΑΓΡΑΦΕΣ


Ταχύτητα κοπής: 0-60000mm / λεπτό
Υποστηριζόμενη μορφή γραφικών: DWG, DXF
Εφαρμογή: Κοπή λέιζερ
Συνθήκη: Νέα
Πάχος κοπής: 0-30mm
CNC ή όχι: Ναι
Λειτουργία ψύξης: Ψύξη νερού
Λογισμικό ελέγχου: Cypcut
Τόπος καταγωγής: Anhui, Κίνα (ηπειρωτική χώρα)
Εμπορικό σήμα: ACCURL
Πιστοποίηση: CE, ISO, SGS
Product name:metal processing fiber laser cutting machine
Keyword:500W Fiber Laser Cutting Machine price
Ισχύς λέιζερ: 500W / 1000W / 2000W / 3000W
Λειτουργία: Κοπή μεταλλικών υλικών
Name:Chinese Fiber Laser Cutting Machine Price
Χρώμα: Απαιτείται
Τύπος: Κοπή λέιζερ
Model:Processing Metal
Εμβαδόν εργασίας: 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Certificate:ISO CE
Εξυπηρέτηση μετά την πώληση: Μηχανικοί διαθέσιμοι για την εξυπηρέτηση μηχανών στο εξωτερικό

περιγραφή προϊόντος


Χαρακτηριστικά πίνακα μηχανών:

1.Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.

2,The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.

3, Applicable materials: stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, titanium and some metal plate and pipe.

4, Applicable industries: Glasses,jewelry,kitchen ware,chassis and cabinet,metal pipe,lamp&lanterns,metal ware,hardware,precision machinery,auto parts,elevator,nameplate,advertisement,electronics,toys and other industries. metal fiber metal laser cutting machine for 1mm 2mm 3mm 5mm 6mm Stainless Steel  500w 5mm carbon steel fiber laser cutting machine cnc auto focus laser cutter 4020 cnc fiber 500 watt laser metal cutting machine 4m

Technical Specifications, we can also make model according to customer request:

Effective size(mm)4000*15003000*15004000*2000
Max process height(mm)90


Effective stroke

X axis(mm)455030504050
Y axis(mm)155015502050
Z axis(mm)100


Ακρίβεια θέσης

X axis(mm/m)0.03
Y axis(mm/m)0.03
Z axis(mm/m)0.01


Repeated

accuracy

X axis(mm)0.02
Y axis(mm)0.02
Z axis(mm)0.005
Fast positioning

Ταχύτητα

X axis(m/min)80
Y axis(m/min)80
Z axis(m/min)30
Μέγιστη ταχύτητα κοπής30m / λεπτό
Μέγιστο πάχος κοπήςdepends on laser power
Κατανάλωση ενέργειαςdepends on laser power
Protection levelIP54
Machine weight (Ton)4.94.55.3
Size L*W*H(mm)5820*2285*13464516*2220*13465628*2950*1346



Οι Υπηρεσίες μας


(1) Δύο χρόνια εγγύηση ποιότητας, το μηχάνημα με κύρια μέρη (εξαιρούνται τα αναλώσιμα)

θα πρέπει να αλλάξει δωρεάν αν υπάρχει κάποιο πρόβλημα κατά τη διάρκεια της περιόδου εγγύησης.
(2) Διάρκεια ζωής συντήρησης χωρίς χρέωση.
(3) Δωρεάν εκπαίδευση στο εργοστάσιό μας.
(4) 18 ώρες υπηρεσία on line καθημερινά, δωρεάν τεχνική υποστήριξη.
(5) Το μηχάνημα έχει ρυθμιστεί πριν από την παράδοση. Θα λάβουμε φωτογραφίες μηχανών και θα φτιάξουμε
μηχανή εικόνα εργασίας για σας, αφού getyour συμφωνία, τότε θα κρατήσουμε ένα πλοίο.
(6) Παροχή τεχνικών υπηρεσιών στην πόρτα (Έχουμε επαγγελματίες μηχανικούς να προσφέρουν μηχανή
εγκατάσταση και συντήρηση της εγκατάστασης).
(7) Αν έχετε κάποιο πρόβλημα κατά τη χρήση σας, χρειάζεστε τον τεχνικό μας για να κρίνουμε πού
Το πρόβλημα είναι και θα σας βοηθήσει να το λύσετε. Μπορούμε να παρέχουμε στους θεατές της ομάδας και το skype με cam μέχρι

όλα τα προβλήματά σας λύθηκαν.

Συχνές ερωτήσεις


Q1. Εμπορική εταιρεία ή κατασκευαστής;

A: We are manufacturer, welcome to visit our factory!

Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating video ,also our aftermarket technician can help you via Wechat,Whatsapp ,Skype teamviewer etc.

Q3. What should I do when the machine is in trouble?
A: Make sure all the wires be connecting well ,and keep your lens and mirrors clean(only for Yag laser cutting machine) ,then check your laser tube and share details with us.

Q4: How long does it take to learn how to operate a laser cutting machine?
A: If you are able to use some basic graphic design software, it will only take a few hours, some simple tests on different processing materials are required to learn how to adjust the speed and laser power.

Q5: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser won’t shoot the skin and eyes directly.

In order to provide a better offer for you, please let me know your requirements as below:

1) What's the materials you want to cut ?
2) The thickness of each cutting materials? max/usual thickness.
3) What's the size of metal you want to cut ?
4) What is the final products ?

5) Are you end user or machine distributor?
